High contrast Far-Infrared and Mid-Infrared Polarizer P03
High contrast polarizer for the far-infrared and complete mid-infrared simultaneously. High-frequency limit is extended to typically 5000cm-1 or 2µm. A polarization contrast of Tp/Ts = 10,000 : 1 is reached.
The polarizer is mounted in a 50mm dia. x 14mm thick metal ring. Four 2mm dia. screw holes on a 38mm dia. circle are provided for mounting.
(CA 18.4mm is mounted in a ring with 25.4mm diameter and 2.5mm thickness)

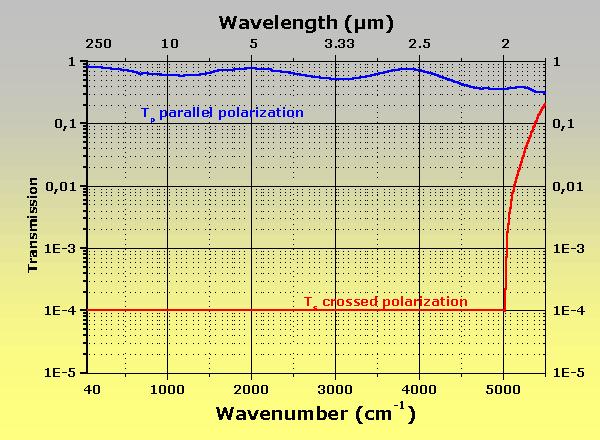

Please see below the typical extinction and transmission spectrum (against linearly polarized light as reference):
